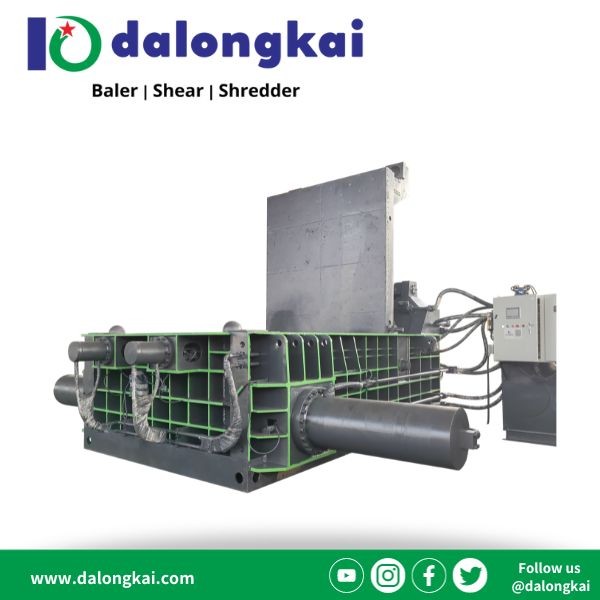

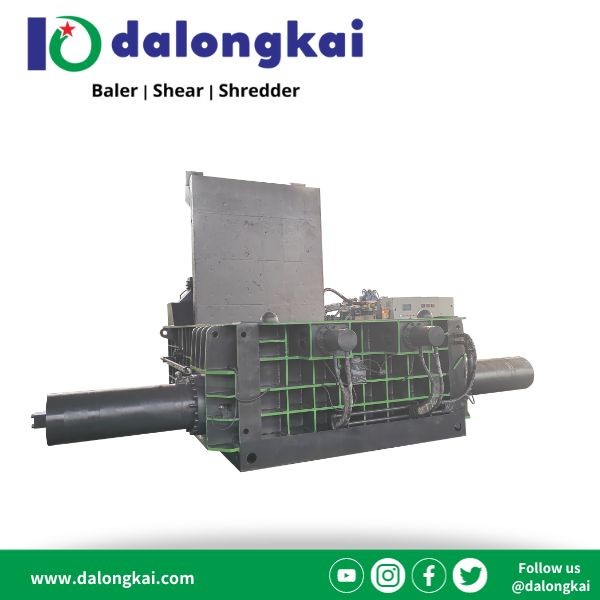

Four Action Compression
Without Front Bales/bundles Side Eject System
Bales will be taken out by material handler or magnet
Final/Main Cylinder Force Range From 125 tons to 2500 tons
Double main cylinders
Bale Size is Optional
Electric Motors Drive
PLC Full Automatic Control
Remote Controller Operation
Technical Data:
| Model: Y81K-315/3x2.5m |
4 actions compression force |
| Double main cylinders |
| Per main cylinder force: 315 tons |
| Bale will be taken out mechanically by the grab or magnet |
Feeding box inner size: 3x2.5x1.2m |
| Bale size: 600*600mm (other sizes are optional) |
| Motor power: 45KW* 2sets |
| Motor speed: 1500rpm |
| Pump model: A4V250 |
| Pump displacement: 250ml/r |
For more details, kindly contact us.
